Water and Wastewater

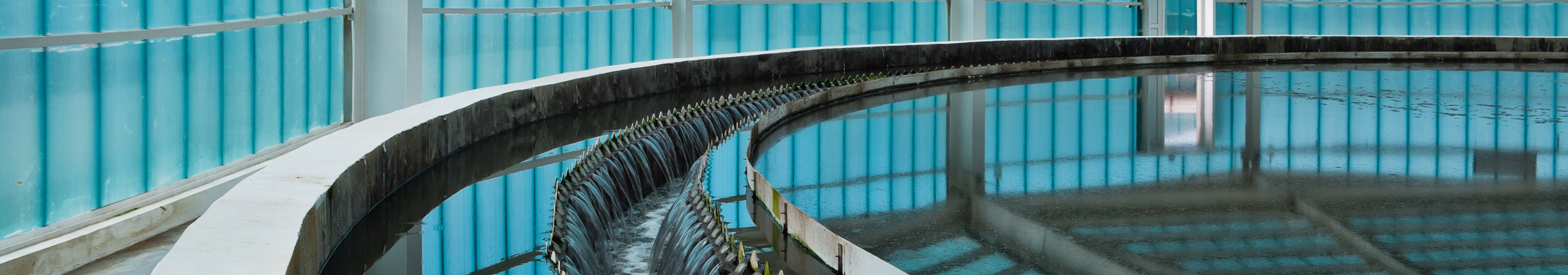

Water is widely used across all industries and in agriculture. In many cases, it must be purified or cleared of sand, mechanical particles, or other contaminants. This is typically done by using water treatment systems. After a technological cycle is completed, the water can be treated again.
Wastewater treatment is not only about reducing environmental impact—it also leads to a significant cost savings, since treated water can be reused. PIEZUS pressure transmitters are durable and reliable, helping to simplify and efficiently solve all of these challenges.
Compact line
pressure transmitter
Ranges: 6 bar up to 600 bar
Accuracy: ±0.5%, ±1%
Sensor: silicon piezoresistive, welded
Digital pressure gauge for aggressive/viscous/abrasive media
Ranges: 0.6 bar up to 600 bar
Basic accuracy: ±0.5%
Sensor: ceramic thick film
Pressure port: stainless steel, plastic
Display: 4 ½ digits with backlight, min / max value, bargraph, units, 330° rotatable
Battery life: 1 year to 5 years
Ranges: 40 mbar up to 600 bar
Basic accuracy: ±0.25%
Sensor: silicon piezoresistive
Display: 4 ½ digits with backlight, min / max value, bargraph, units, 330° rotatable
Battery life: 1 year to 5 years
Standard industrial pressure transmitter
Ranges: 40 mbar up to 600 bar
Basic accuracy: ±0.25%
Optional: Ex ia, Modbus, HART,
field housing, display
Economy line dual/triple-range pressure transmitter
Ranges: 6 bar up to 600 bar, up to 3 ranges user selectable
Accuracy: ±0.5%, ±1%
Sensor: silicon piezoresistive, welded
Precision pressure transmitter for aggressive/viscous/abrasive media
Ranges: 40 mbar to 10 bar
Basic accuracy: ±0.25%
Sensor: high precision ceramic capacitive
Pressure port: stainless steel, PVC, PVDF Flush diaphragm
Optional: field housing with/without graphics display
Industrial pressure transmitter for aggressive/viscous/abrasive media
Ranges: 0.6 bar up to 600 bar
Accuracy: ±0.5%
Sensor: ceramic thick film
Pressure port: stainless steel, plastic
Optional: Ex ia, open port, flush diaphragm, field housing, display
Standard submersible pressure transmitter
Ranges: 1 mH2O up to 250 mH2O
Basic accuracy: ±0.25%
Probe: Ø27 mm
Optional: Ex ia, HART, Modbus, Pt100
