Submersible pressure transmitters

12 Item(s)

  • -ALZ 3720
    ALZ 3720
    Standard submersible pressure transmitter
    Ranges: 1 mH2O up to 250 mH2O
    Basic accuracy: ±0.25%
    Probe: Ø27 mm
    Optional: Ex ia, HART, Modbus, Pt100
    $249
  • -ALZ 3710

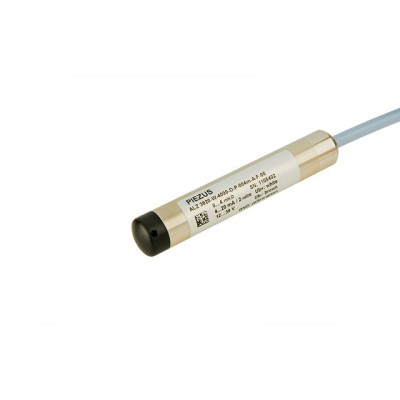

    ALZ 3710
    Small diameter submersible pressure transmitter for aggressive media
    Level: - 6 mH2O   up to  200 mH2O (  stainless   steel   housing),
       - 6 mH2O up to 100 mH2O (PP-HT and PVC housing)
    Basic accuracy: ±0.5%
    Probe: Ø21 mm, PP-HT, PVC. Optional: Ø17 mm
    $249
  • -ALZ 3721
    ALZ 3721
    Precision submersible pressure transmitter
    Ranges: 1 mH2O up to 250 mH2O
    Basic accuracy: ±0.1%
    Probe: Ø27 mm
    $349
  • -ALZ 3820
    ALZ 3820
    Submersible pressure transmitter with detachable probe
    Ranges: 1 mH2O up to 250 mH2O
    Basic accuracy: ±0.25%
    Probe: Ø27 mm
    Optional: Ex ia, Pt100 temperature sensor
    $299
  • -ALZ 3821
    ALZ 3821
    Precision submersible pressure transmitter with detachable probe
    Ranges: 1 mH2O up to 250 mH2O
    Basic accuracy: ±0.1%
    Probe: Ø27 mm
    Optional: Ex ia, HART, Modbus, Pt100
    $399
  • -ALZ 3740
    ALZ 3740
    Precision submersible pressure transmitter for viscous media
    Level: 0.4 mH2O up to 100 mH2O
    Basic accuracy: ±0.25%
    Sensor: high-precision ceramic capacitive
    Probe: Ø39.7 mm, AISI 316L
    Optional: Ex ia, Pt100
    $449
  • -ALZ 3742
    ALZ 3742
    Precision submersible pressure transmitter for aggressive media
    Level: 0.4 mH2O up to 100 mH2O
    Basic accuracy: ±0.25%
    Sensor: high precision ceramic capacitive
    Probe: Ø45 mm, plastic
    $349
  • -ALZ 3920
    ALZ 3920
    Small diameter submersible pressure transmitter
    Level: 1 mH2O up to 250 mH2O
    Basic accuracy: ±0.25%
    Probe: Ø21 mm
    Optional: Ex ia
    $399
  • -ALZ 3925
    ALZ 3925
    Ultra small diameter submersible pressure transmitter
    Level: 6 mH2O up to 250 mH2O
    Basic accuracy: ±0.25%
    Probe: Ø17 mm, AISI 316L stainless steel
    Output: 4...20 mA
    Sensor: silicon piezoresistive
    Media temperatures: -20…+70 °C
    $499
  • -ALZ 3822

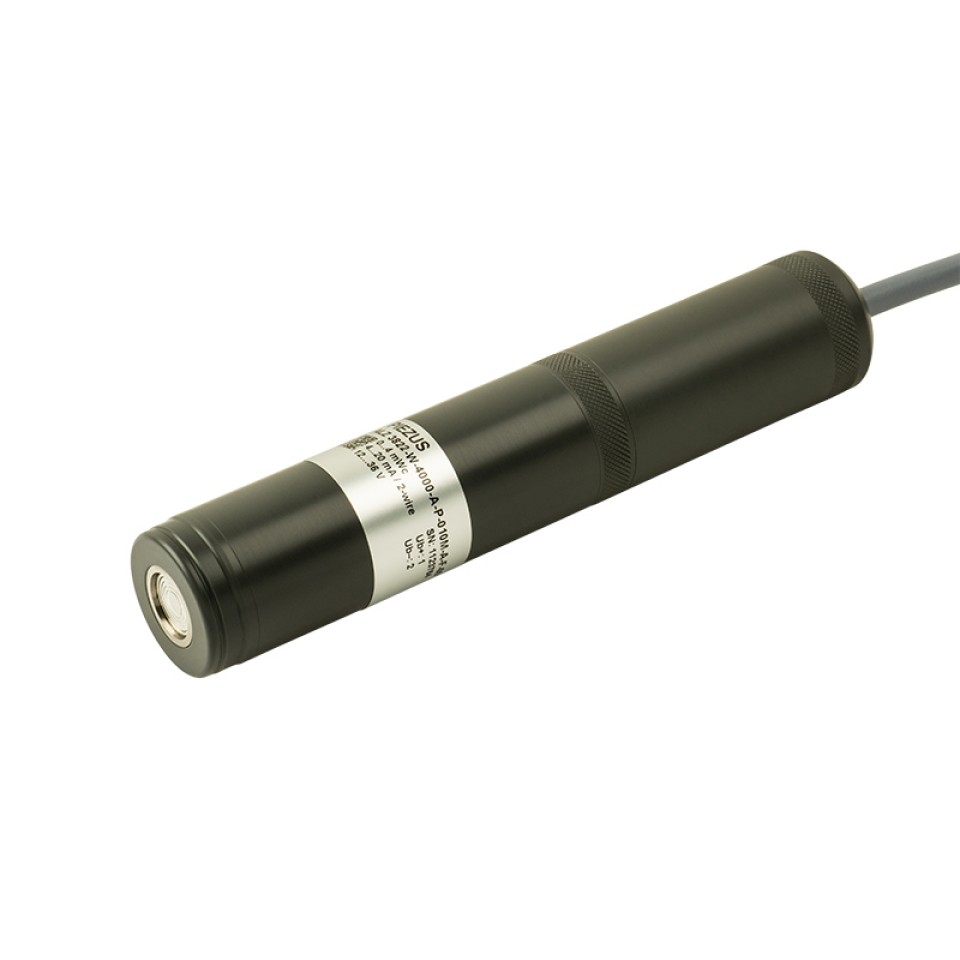

    ALZ 3822
    Submersible pressure transmitter with detachable probe
    Ranges: 1 mH2O up to 100 mH2O
    Basic accuracy: ±0.25%
    Probe: Ø35 mm, plastic
    Optional: HART, Modbus
    $249
  • -ALZ 3824
    ALZ 3824
    Precision submersible pressure transmitter with detachable probe
    Ranges: 1 mH2O up to 100 mH2O
    Basic accuracy: ±0.1%
    Probe: Ø35 mm, plastic, detachable from the cable for easy service
    Optional: HART, Modbus
    $349
  • -ALZ 2712
    ALZ 2712
    Submersible pressure transmitter for aggressive media
    Level: 6 mH2O up to 100 mH2O
    Basic accuracy: ±0.5%
    Sensor: ceramic piezoresistive
    Probe: Ø27 mm, PVC, PP-HT
    $299

12 Item(s)
