ALZ 3820

$299

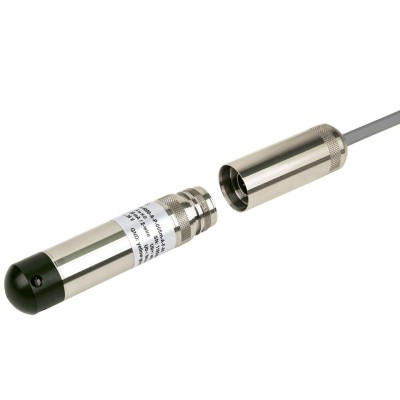

Submersible pressure transmitter with detachable probe

Features

Ranges: 1 mH2O up to 250 mH2O
Basic accuracy: ±0.25%
Probe: Ø27 mm, AISI 316L, detachable from the cable for easy service
Outputs: 4...20 mA; 0...20 mA; 0...10 V; 0...5 V; RS-485/Modbus RTU
Sensor: silicon piezoresistive
Media temperatures: -20…+70 °C
Optional: Ex ia, HART, Pt100 temperature sensor

Description

ALZ 3820 is a general purpose submersible hydrostatic level transmitter with detachable probe, allowing quick and easy removal for service or replacement. High quality silicon piezoresistive sensor, robust stainless steel housing and a hydrometric cable with the ventilation tube make APZ 3820 a reliable solution for a wide variety of industrial level measurement applications.

Code configurator

Order code:

  • -BZ 05 / BZ 10
    BZ 05 / BZ 10
    Dry air junction box for submersible transmitters
    Port 1: cable gland, for vented transmitter cable Ø6...10 mm
    Port 2: cable gland, for equipment cable Ø6...10 mm
    Air venting: membrane air vent valve
    Housing: aluminum
    Features: 10kV surge protection
    Optional: Pt100 transmitter
  • -KZ 05
    KZ 05
    -KZ 05
    Anchoring clamp for submersible transmitter
    Cable diameter: 5.5-10.5 mm
    Materials: stainless steel housing, PA jaws
    Bearing capacity: 250 kg
Implementation
3D model file
Standard
ALZ3820_standard.step
longer
ALZ3820_longer.step
