ALZ 2712
$299

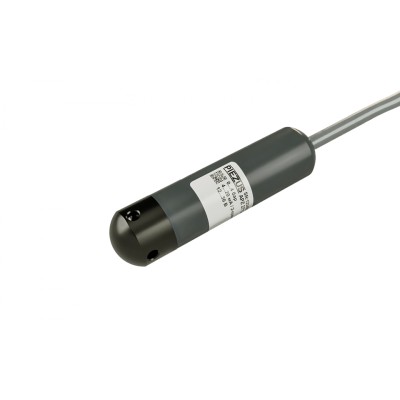

Submersible pressure transmitter for aggressive media
Description
ALZ 2712 is a general purpose submersible hydrostatic level transmitter. High-quality ceramic tensoresistive sensor, and plastic housing make ALZ 2712 a great choice for the aggressive* and viscous media. ALZ 2712 reliable and cost-effective solution for a wide variety of industrial level measurement applications. The transmitter features a 27 mm diameter housing made of PVC or high‑temperature polypropylene (PP‑HT)
(*) please consult the manufacturer for particular media compatibility
- Dry air junction box for submersible transmittersPort 1: cable gland, for vented transmitter cable Ø6...10 mm
Port 2: cable gland, for equipment cable Ø6...10 mm
Air venting: membrane air vent valve
Housing: aluminum
Features: 10kV surge protection
Optional: Pt100 transmitter - Anchoring clamp for submersible transmitterCable diameter: 5.5-10.5 mm
Materials: stainless steel housing, PA jaws
Bearing capacity: 250 kg
