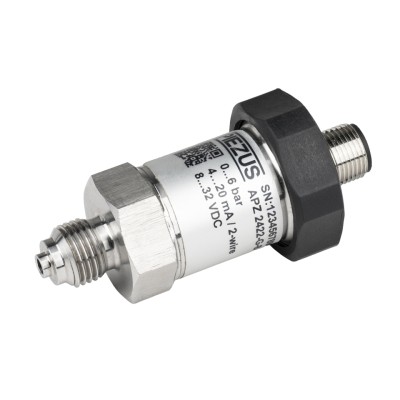

APZ 2422

$139
Economy line dual/triple-range pressure transmitter

Features

Ranges: 6 bar up to 600 bar
Number of ranges: up to 3, user-selectable via ZCON 100*
Pressure type: gauge
Accuracy: ±0.5%, ±1% FS of the highest chosen range
Output: 4...20 mA / 2 wire
Sensor: silicon piezoresistive
Pressure port: G1/2ˮ; G1/4ˮ; 1/2ˮ NPT; 1/4ˮ NPT; M20x1.5 etc.
Media temperatures: -40...+125 °C
Ambient temperatures: -40...+85 °C

(*) ZCON 100 configurator is sold separately and provides ZERO TRIM and RANGE SWITCHING features

Description

APZ 2422 economy line pressure transmitters feature up to three pressure ranges selectable by the user via ZCON 100 configurator tool, allowing customers to have reduced inventory of spare instruments. Based on a welded stainless steel silicon piezoresistive sensor, APZ 2422 is a great choice for the applications where elastomeric seal is not desirable.

Code configurator

Order code:

  • -DZ 10
    DZ 10
    Pressure snubber
    Pressure range: up to 700 bar
    Operation principle: throttling
    Temperature range: up to +250 °C
    Housing material: stainless steel
  • -ZCON 100
    ZCON 100
    -ZCON 100
    Zero trim and range selection device
    Ranges: selection of up to 3 ranges, zero trim
    Supported transmitters: multi-range
    Power: 4xAA batteries
  • -ANZ 200
    ANZ 200
    -ANZ 200
    Plug-in display for transmitters with 4-20 mA output
    Compatibility: 4-20 mA transmitters with DIN 43650А connectors
    Display: graphics OLED, rotatable in 2 axis
    Range: -1999...+9999
    Features: min/max values, selectable units and decimal point, archive chart, averaging
    Optional: PNP (high side) switch output
