APZ 2422 a

$89

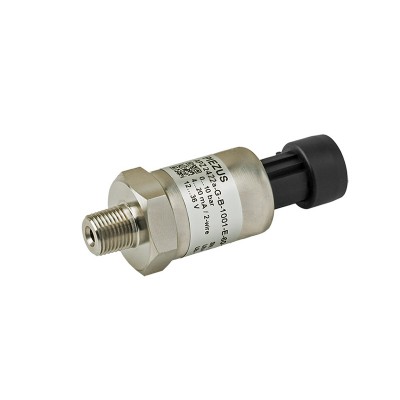

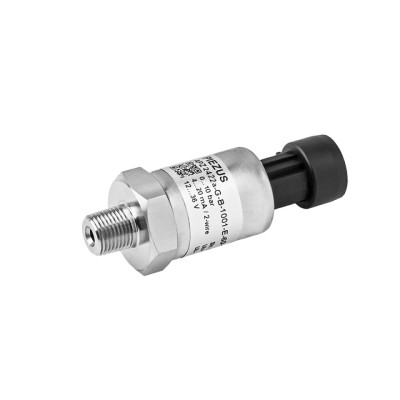

Compact line pressure transmitter

Features

Ranges: 6 bar up to 600 bar
Pressure type: gauge
Accuracy: ±0.5%, ±1%
Output: 4...20 mA / 2 wire
Sensor: silicon piezoresistive
Pressure port: G1/4”; 1/4” NPT; 1/8” NPT; 7/16’’-20 UNF etc.
Electrical connection: Packard Metri-Pack, DIN 43650C, AMP-Superseal 1.5, cable gland
Media temperatures: -40...+125 °C
Ambient temperatures: -40...+85 °C

Description

APZ 2422a compact line pressure transmitters are primarily offered to OEM manufacturers at special prices and in MOQ of 50 pieces per part number. Based on a welded stainless steel silicon piezoresistive sensor, this transmitter is a great choice for the applications where elastomeric seal is not desirable. APZ 2422a supports ZERO TRIM feature by use of ZCON 100 configurator (*).

(*) ZCON 100 configurator is sold separately

Code configurator

Order code:

  • -DZ 10
    DZ 10
    Pressure snubber
    Pressure range: up to 700 bar
    Operation principle: throttling
    Temperature range: up to +250 °C
    Housing material: stainless steel
  • -ZCON 100
    ZCON 100
    -ZCON 100
    Zero trim and range selection device
    Ranges: selection of up to 3 ranges, zero trim
    Supported transmitters: multi-range
    Power: 4xAA batteries
Mechanical connection
Electrical connection
3D model file
G 1/4" DIN 3852
AMP superseal 3-pin
APZ2422a_G1'4DIN_AMP.step
G 1/4" DIN 3852
Cable Gland with cable (lenght by request)
APZ2422a_G1'4DIN_CableGland#2.step
G 1/4" DIN 3852
DIN 43650 C
APZ2422a_G1'4DIN_DIN43650C.step
G 1/4" DIN 3852
Packard
APZ2422a_G1'4DIN_Packard.step
G 1/4" EN 837
AMP superseal 3-pin
APZ2422a_G1'4EN_AMP.step
G 1/4" EN 837
Cable Gland with cable (lenght by request)
APZ2422a_G1'4EN_CableGland#2.step
G 1/4" EN 837
DIN 43650 C
APZ2422a_G1'4EN_DIN43650C.step
G 1/4" EN 837
Packard
APZ2422a_G1'4EN_Packard.step
G 1/8" DIN 3852
AMP superseal 3-pin
APZ2422a_G1'8DIN_AMP.step
G 1/8" DIN 3852
Cable Gland with cable (lenght by request)
APZ2422a_G1'8DIN_CableGland#2.step
G 1/8" DIN 3852
DIN 43650 C
APZ2422a_G1'8DIN_DIN43650C.step
G 1/8" DIN 3852
Packard
APZ2422a_G1'8DIN_Packard.step
M12x1 DIN 3852
AMP superseal 3-pin
APZ2422a_M12x1DIN_AMP.step
M12x1 DIN 3852
Cable Gland with cable (lenght by request)
APZ2422a_M12x1DIN_CableGland#2.step
M12x1 DIN 3852
DIN 43650 C
APZ2422a_M12x1DIN_DIN43650C.step
M12x1 DIN 3852
Packard
APZ2422a_M12x1DIN_Packard.step
M14x1,5 DIN 3852
AMP superseal 3-pin
APZ2422a_M14x1,5DIN_AMP.step
M14x1,5 DIN 3852
Cable Gland with cable (lenght by request)
APZ2422a_M14x1,5DIN_CableGland#2.step
M14x1,5 DIN 3852
DIN 43650 C
APZ2422a_M14x1,5DIN_DIN43650C.step
M14x1,5 DIN 3852
Packard
APZ2422a_M14x1,5DIN_Packard.step
1/8" NPT
AMP superseal 3-pin
APZ2422a_1'8NPT_AMP.step
1/8" NPT
Cable Gland with cable (lenght by request)
APZ2422a_1'8NPT_CableGland#2.step
1/8" NPT
DIN 43650 C
APZ2422a_1'8NPT_DIN43650C.step
1/8" NPT
Packard
APZ2422a_1'8NPT_Packard.step
7/16"-20 UNF
AMP superseal 3-pin
APZ2422a_7'16-20UNF_AMP.step
7/16"-20 UNF
Cable Gland with cable (lenght by request)
APZ2422a_7'16-20UNF_CableGland#2.step
7/16"-20 UNF
DIN 43650 C
APZ2422a_7'16-20UNF_DIN43650C.step
7/16"-20 UNF
Packard
APZ2422a_7'16-20UNF_Packard.step
1/4" NPT
AMP superseal 3-pin
APZ2422a_1'4NPT_AMP.step
1/4" NPT
Cable Gland with cable (lenght by request)
APZ2422a_1'4NPT_CableGland#2.step
1/4" NPT
DIN 43650 C
APZ2422a_1'4NPT_DIN43650C.step
1/4" NPT
Packard
APZ2422a_1'4NPT_Packard.step
