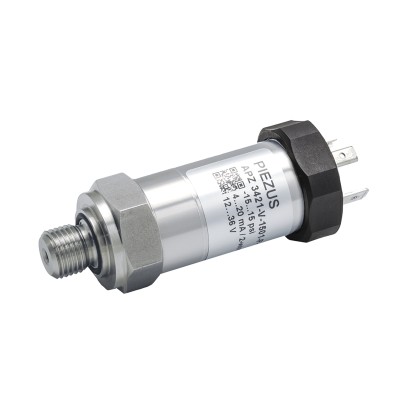

APZ 3421

$399
Precision pressure transmitter

Features

Pressure ranges: 40 mbar up to 600 bar
Basic accuracy ±0.1%
Outputs: 4...20 mA (option – Ex ia); 0...20 mA; 0...10 V; 0...5 V; HART; RS-485/Modbus RTU
Sensor: silicon piezoresistive Pressure port: G1/2”; G1/4”; 1/2” NPT; 1/4” NPT; М20х1.5 etc.
Media temperatures: -20…+105 °C
Ambient temperatures: -20…+80 °C
Optional field housing with/without graphics display

Description

APZ 3421 is a high precision pressure transmitter. Based on a silicon piesoresistive sensor and electronic module with an active temperature compensation technology it features exceptional accuracy and response time. APZ 3421 has a wide variety of optional features such as display and digital interfaces to suit almost any of the high precision measurement applications.

Code configurator

Order code:

  • Pressure snubber
    Pressure range: up to 700 bar
    Operation principle: throttling
    Temperature range: up to +250 °C
    Housing material: stainless steel
  • Plug-in display for transmitters with 4-20 mA output
    Compatibility: 4-20 mA transmitters with DIN 43650А connectors
    Display: graphics OLED, rotatable in 2 axis
    Range: -1999...+9999
    Features: min/max values, selectable units and decimal point, archive chart, averaging
    Optional: PNP (high side) switch output
Mechanical connection Electrical connection Model file
G 1/2" DIN 3852Binder 723APZ3421_G1'2DIN_Binder723.step
G 1/2" DIN 3852BuccaneerAPZ3421_G1'2DIN_Buccaneer.step
G 1/2" DIN 3852Cable GlandAPZ3421_G1'2DIN_CableGland.step
G 1/2" DIN 3852DIN 43650 AAPZ3421_G1'2DIN_DIN43650A.step
G 1/2" DIN 3852M12x1 angularAPZ3421_G1'2DIN_M12x1-angular.step
G 1/2" DIN 3852M12x1 straightAPZ3421_G1'2DIN_M12x1-straight.step
G 1/2" DIN 3852StainlessSteelCableGlandAPZ3421_G1'2DIN_StainlessSteelCableGland.step
G 1/2" DIN 3852CableGlandM20x1,5APZ3421FH_G1'2DIN_CableGlandM20x1,5.step
G 1/2" DIN 3852CableGlandM20x1,5APZ3421FH_G1'2DIN_CableGlandM20x1,5_display.step
G 1/2" DIN 3852M12x1 angularAPZ3421FH_G1'2DIN_M12x1-angular.step
G 1/2" DIN 3852M12x1 angularAPZ3421FH_G1'2DIN_M12x1-angular_display.step
G 1/2" DIN 3852M12x1 straightAPZ3421FH_G1'2DIN_M12x1-straight.step
G 1/2" DIN 3852M12x1 straightAPZ3421FH_G1'2DIN_M12x1-straight_display.step
G 1/2" EN 837Binder 723APZ3421_G1'2EN_Binder723.step
G 1/2" EN 837BuccaneerAPZ3421_G1'2EN_Buccaneer.step
G 1/2" EN 837Cable GlandAPZ3421_G1'2EN_CableGland.step
G 1/2" EN 837DIN 43650 AAPZ3421_G1'2EN_DIN43650A.step
G 1/2" EN 837M12x1 angularAPZ3421_G1'2EN_M12x1-angular.step
G 1/2" EN 837M12x1 straightAPZ3421_G1'2EN_M12x1-straight.step
G 1/2" EN 837StainlessSteelCableGlandAPZ3421_G1'2EN_StainlessSteelCableGland.step
G 1/2" EN 837CableGlandM20x1,5APZ3421FH_G1'2EN_CableGlandM20x1,5.step
G 1/2" EN 837CableGlandM20x1,5APZ3421FH_G1'2EN_CableGlandM20x1,5_display.step
G 1/2" EN 837M12x1 angularAPZ3421FH_G1'2EN_M12x1-angular.step
G 1/2" EN 837M12x1 angularAPZ3421FH_G1'2EN_M12x1-angular_display.step
G 1/2" EN 837M12x1 straightAPZ3421FH_G1'2EN_M12x1-straight.step
G 1/2" EN 837M12x1 straightAPZ3421FH_G1'2EN_M12x1-straight_display.step
G 1/4" DIN 3852Binder 723APZ3421_G1'4DIN_Binder723.step
G 1/4" DIN 3852BuccaneerAPZ3421_G1'4DIN_Buccaneer.step
G 1/4" DIN 3852Cable GlandAPZ3421_G1'4DIN_CableGland.step
G 1/4" DIN 3852DIN 43650 AAPZ3421_G1'4DIN_DIN43650A.step
G 1/4" DIN 3852M12x1 angularAPZ3421_G1'4DIN_M12x1-angular.step
G 1/4" DIN 3852M12x1 straightAPZ3421_G1'4DIN_M12x1-straight.step
G 1/4" DIN 3852StainlessSteelCableGlandAPZ3421_G1'4DIN_StainlessSteelCableGland.step
G 1/4" DIN 3852CableGlandM20x1,5APZ3421FH_G1'4DIN_CableGlandM20x1,5.step
G 1/4" DIN 3852CableGlandM20x1,5APZ3421FH_G1'4DIN_CableGlandM20x1,5_display.step
G 1/4" DIN 3852M12x1 angularAPZ3421FH_G1'4DIN_M12x1-angular.step
G 1/4" DIN 3852M12x1 angularAPZ3421FH_G1'4DIN_M12x1-angular_display.step
G 1/4" DIN 3852M12x1 straightAPZ3421FH_G1'4DIN_M12x1-straight.step
G 1/4" DIN 3852M12x1 straightAPZ3421FH_G1'4DIN_M12x1-straight_display.step
G 1/4" EN 837Binder 723APZ3421_G1'4EN_Binder723.step
G 1/4" EN 837BuccaneerAPZ3421_G1'4EN_Buccaneer.step
G 1/4" EN 837Cable GlandAPZ3421_G1'4EN_CableGland.step
G 1/4" EN 837DIN 43650 AAPZ3421_G1'4EN_DIN43650A.step
G 1/4" EN 837M12x1 angularAPZ3421_G1'4EN_M12x1-angular.step
G 1/4" EN 837M12x1 straightAPZ3421_G1'4EN_M12x1-straight.step
G 1/4" EN 837StainlessSteelCableGlandAPZ3421_G1'4EN_StainlessSteelCableGland.step
G 1/4" EN 837CableGlandM20x1,5APZ3421FH_G1'4EN_CableGlandM20x1,5.step
G 1/4" EN 837CableGlandM20x1,5APZ3421FH_G1'4EN_CableGlandM20x1,5_display.step
G 1/4" EN 837M12x1 angularAPZ3421FH_G1'4EN_M12x1-angular.step
G 1/4" EN 837M12x1 angularAPZ3421FH_G1'4EN_M12x1-angular_display.step
G 1/4" EN 837M12x1 straightAPZ3421FH_G1'4EN_M12x1-straight.step
G 1/4" EN 837M12x1 straightAPZ3421FH_G1'4EN_M12x1-straight_display.step
G 1/8" DIN 3852CableGlandM20x1,5APZ3421FH_G1'8DIN_CableGlandM20x1,5.step
G 1/8" DIN 3852CableGlandM20x1,5APZ3421FH_G1'8DIN_CableGlandM20x1,5_display.step
G 1/8" DIN 3852M12x1 angularAPZ3421FH_G1'8DIN_M12x1-angular.step
G 1/8" DIN 3852M12x1 angularAPZ3421FH_G1'8DIN_M12x1-angular_display.step
G 1/8" DIN 3852M12x1 straightAPZ3421FH_G1'8DIN_M12x1-straight.step
G 1/8" DIN 3852M12x1 straightAPZ3421FH_G1'8DIN_M12x1-straight_display.step
M10x1 DIN 3852Binder 723APZ3421_M10x1DIN_Binder723.step
M10x1 DIN 3852BuccaneerAPZ3421_M10x1DIN_Buccaneer.step
M10x1 DIN 3852Cable GlandAPZ3421_M10x1DIN_CableGland.step
M10x1 DIN 3852DIN 43650 AAPZ3421_M10x1DIN_DIN43650A.step
M10x1 DIN 3852M12x1 angularAPZ3421_M10x1DIN_M12x1-angular.step
M10x1 DIN 3852M12x1 straightAPZ3421_M10x1DIN_M12x1-straight.step
M10x1 DIN 3852StainlessSteelCableGlandAPZ3421_M10x1DIN_StainlessSteelCableGland.step
M10x1 DIN 3852CableGlandM20x1,5APZ3421FH_M10x1DIN_CableGlandM20x1,5.step
M10x1 DIN 3852CableGlandM20x1,5APZ3421FH_M10x1DIN_CableGlandM20x1,5_display.step
M10x1 DIN 3852M12x1 angularAPZ3421FH_M10x1DIN_M12x1-angular.step
M10x1 DIN 3852M12x1 angularAPZ3421FH_M10x1DIN_M12x1-angular_display.step
M10x1 DIN 3852M12x1 straightAPZ3421FH_M10x1DIN_M12x1-straight.step
M10x1 DIN 3852M12x1 straightAPZ3421FH_M10x1DIN_M12x1-straight_display.step
M12x1,5 DIN 3852Binder 723APZ3421_M12x1,5DIN_Binder723.step
M12x1,5 DIN 3852BuccaneerAPZ3421_M12x1,5DIN_Buccaneer.step
M12x1,5 DIN 3852Cable GlandAPZ3421_M12x1,5DIN_CableGland.step
M12x1,5 DIN 3852DIN 43650 AAPZ3421_M12x1,5DIN_DIN43650A.step
M12x1,5 DIN 3852M12x1 angularAPZ3421_M12x1,5DIN_M12x1-angular.step
M12x1,5 DIN 3852M12x1 straightAPZ3421_M12x1,5DIN_M12x1-straight.step
M12x1,5 DIN 3852StainlessSteelCableGlandAPZ3421_M12x1,5DIN_StainlessSteelCableGland.step
M12x1,5 DIN 3852CableGlandM20x1,5APZ3421FH_M12x1,5DIN_CableGlandM20x1,5.step
M12x1,5 DIN 3852CableGlandM20x1,5APZ3421FH_M12x1,5DIN_CableGlandM20x1,5_display.step
M12x1,5 DIN 3852M12x1 angularAPZ3421FH_M12x1,5DIN_M12x1-angular.step
M12x1,5 DIN 3852M12x1 angularAPZ3421FH_M12x1,5DIN_M12x1-angular_display.step
M12x1,5 DIN 3852M12x1 straightAPZ3421FH_M12x1,5DIN_M12x1-straight.step
M12x1,5 DIN 3852M12x1 straightAPZ3421FH_M12x1,5DIN_M12x1-straight_display.step
M12x1,25 DIN 3852CableGlandM20x1,5APZ3421FH_M12x1,25DIN_CableGlandM20x1,5.step
M12x1,25 DIN 3852CableGlandM20x1,5APZ3421FH_M12x1,25DIN_CableGlandM20x1,5_display.step
M12x1,25 DIN 3852M12x1 angularAPZ3421FH_M12x1,25DIN_M12x1-angular.step
M12x1,25 DIN 3852M12x1 angularAPZ3421FH_M12x1,25DIN_M12x1-angular_display.step
M12x1,25 DIN 3852M12x1 straightAPZ3421FH_M12x1,25DIN_M12x1-straight.step
M12x1,25 DIN 3852M12x1 straightAPZ3421FH_M12x1,25DIN_M12x1-straight_display.step
M12x1 DIN 3852Binder 723APZ3421_M12x1DIN_Binder723.step
M12x1 DIN 3852BuccaneerAPZ3421_M12x1DIN_Buccaneer.step
M12x1 DIN 3852Cable GlandAPZ3421_M12x1DIN_CableGland.step
M12x1 DIN 3852DIN 43650 AAPZ3421_M12x1DIN_DIN43650A.step
M12x1 DIN 3852M12x1 angularAPZ3421_M12x1DIN_M12x1-angular.step
M12x1 DIN 3852M12x1 straightAPZ3421_M12x1DIN_M12x1-straight.step
M12x1 DIN 3852StainlessSteelCableGlandAPZ3421_M12x1DIN_StainlessSteelCableGland.step
M12x1 DIN 3852CableGlandM20x1,5APZ3421FH_M12x1DIN_CableGlandM20x1,5.step
M12x1 DIN 3852CableGlandM20x1,5APZ3421FH_M12x1DIN_CableGlandM20x1,5_display.step
M12x1 DIN 3852M12x1 angularAPZ3421FH_M12x1DIN_M12x1-angular.step
M12x1 DIN 3852M12x1 angularAPZ3421FH_M12x1DIN_M12x1-angular_display.step
M12x1 DIN 3852M12x1 straightAPZ3421FH_M12x1DIN_M12x1-straight.step
M12x1 DIN 3852M12x1 straightAPZ3421FH_M12x1DIN_M12x1-straight_display.step
M20x1,5 DIN 3852Binder 723APZ3421_M20x1,5DIN_Binder723.step
M20x1,5 DIN 3852BuccaneerAPZ3421_M20x1,5DIN_Buccaneer.step
M20x1,5 DIN 3852Cable GlandAPZ3421_M20x1,5DIN_CableGland.step
M20x1,5 DIN 3852DIN 43650 AAPZ3421_M20x1,5DIN_DIN43650A.step
M20x1,5 DIN 3852M12x1 angularAPZ3421_M20x1,5DIN_M12x1-angular.step
M20x1,5 DIN 3852M12x1 straightAPZ3421_M20x1,5DIN_M12x1-straight.step
M20x1,5 DIN 3852StainlessSteelCableGlandAPZ3421_M20x1,5DIN_StainlessSteelCableGland.step
M20x1,5 DIN 3852CableGlandM20x1,5APZ3421FH_M20x1,5DIN_CableGlandM20x1,5.step
M20x1,5 DIN 3852CableGlandM20x1,5APZ3421FH_M20x1,5DIN_CableGlandM20x1,5_display.step
M20x1,5 DIN 3852M12x1 angularAPZ3421FH_M20x1,5DIN_M12x1-angular.step
M20x1,5 DIN 3852M12x1 angularAPZ3421FH_M20x1,5DIN_M12x1-angular_display.step
M20x1,5 DIN 3852M12x1 straightAPZ3421FH_M20x1,5DIN_M12x1-straight.step
M20x1,5 DIN 3852M12x1 straightAPZ3421FH_M20x1,5DIN_M12x1-straight_display.step
M20x1,5 EN 837Binder 723APZ3421_M20x1,5EN_Binder723.step
M20x1,5 EN 837BuccaneerAPZ3421_M20x1,5EN_Buccaneer.step
M20x1,5 EN 837Cable GlandAPZ3421_M20x1,5EN_CableGland.step
M20x1,5 EN 837DIN 43650AAPZ3421_M20x1,5EN_DIN 43650A.step
M20x1,5 EN 837M12x1 angularAPZ3421_M20x1,5EN_M12x1-angular.step
M20x1,5 EN 837M12x1 straightAPZ3421_M20x1,5EN_M12x1-straight.step
M20x1,5 EN 837StainlessSteelCableGlandAPZ3421_M20x1,5EN_StainlessSteelCableGland.step
M20x1,5 EN 837CableGlandM20x1,5APZ3421FH_M20x1,5EN_CableGlandM20x1,5.step
M20x1,5 EN 837CableGlandM20x1,5APZ3421FH_M20x1,5EN_CableGlandM20x1,5_display.step
M20x1,5 EN 837M12x1 angularAPZ3421FH_M20x1,5EN_M12x1-angular.step
M20x1,5 EN 837M12x1 angularAPZ3421FH_M20x1,5EN_M12x1-angular_display.step
M20x1,5 EN 837M12x1 straightAPZ3421FH_M20x1,5EN_M12x1-straight.step
M20x1,5 EN 837M12x1 straightAPZ3421FH_M20x1,5EN_M12x1-straight_display.step
M16x1,5 DIN 3852Binder 723APZ3421_M16x1,5DIN_Binder723.step
M16x1,5 DIN 3852BuccaneerAPZ3421_M16x1,5DIN_Buccaneer.step
M16x1,5 DIN 3852Cable GlandAPZ3421_M16x1,5DIN_CableGland.step
M16x1,5 DIN 3852DIN 43650 AAPZ3421_M16x1,5DIN_DIN43650A.step
M16x1,5 DIN 3852M12x1 angularAPZ3421_M16x1,5DIN_M12x1-angular.step
M16x1,5 DIN 3852M12x1 straightAPZ3421_M16x1,5DIN_M12x1-straight.step
M16x1,5 DIN 3852StainlessSteelCableGlandAPZ3421_M16x1,5DIN_StainlessSteelCableGland.step
1/4" NPTBinder 723APZ3421_1'4NPT_Binder723.step
1/4" NPTBuccaneerAPZ3421_1'4NPT_Buccaneer.step
1/4" NPTCable GlandAPZ3421_1'4NPT_CableGland.step
1/4" NPTDIN 43650 AAPZ3421_1'4NPT_DIN43650A.step
1/4" NPTM12x1 angularAPZ3421_1'4NPT_M12x1-angular.step
1/4" NPTM12x1 straightAPZ3421_1'4NPT_M12x1-straight.step
1/4" NPTStainlessSteelCableGlandAPZ3421_1'4NPT_StainlessSteelCableGland.step
M12x1,5 EN 837Binder 723APZ3421_M12x1,5EN_Binder723.step
M12x1,5 EN 837BuccaneerAPZ3421_M12x1,5EN_Buccaneer.step
M12x1,5 EN 837Cable GlandAPZ3421_M12x1,5EN_CableGland.step
M12x1,5 EN 837DIN 43650 AAPZ3421_M12x1,5EN_DIN43650A.step
M12x1,5 EN 837M12x1 angularAPZ3421_M12x1,5EN_M12x1-angular.step
M12x1,5 EN 837M12x1 straightAPZ3421_M12x1,5EN_M12x1-straight.step
M12x1,5 EN 837StainlessSteelCableGlandAPZ3421_M12x1,5EN_StainlessSteelCableGland.step
1/2" NPTBinder 723APZ3421_1'2NPT_Binder723.step
1/2" NPTBuccaneerAPZ3421_1'2NPT_Buccaneer.step
1/2" NPTCable GlandAPZ3421_1'2NPT_CableGland.step
1/2" NPTDIN 43650 AAPZ3421_1'2NPT_DIN43650A.step
1/2" NPTM12x1 angularAPZ3421_1'2NPT_M12x1-angular.step
1/2" NPTM12x1 straightAPZ3421_1'2NPT_M12x1-straight.step
1/2" NPTStainlessSteelCableGlandAPZ3421_1'2NPT_StainlessSteelCableGland.step
M12x1 EN 837Binder 723APZ3421_M12x1EN_Binder723.step
M12x1 EN 837BuccaneerAPZ3421_M12x1EN_Buccaneer.step
M12x1 EN 837Cable GlandAPZ3421_M12x1EN_CableGland.step
M12x1 EN 837DIN 43650 AAPZ3421_M12x1EN_DIN43650A.step
M12x1 EN 837M12x1 angularAPZ3421_M12x1EN_M12x1-angular.step
M12x1 EN 837M12x1 straightAPZ3421_M12x1EN_M12x1-straight.step
M12x1 EN 837StainlessSteelCableGlandAPZ3421_M12x1EN_StainlessSteelCableGland.step
See Also
  • $99
    Plug-in display for transmitters with 4-20 mA output
    Compatibility: 4-20 mA transmitters with DIN 43650А connectors
    Display: graphics OLED, rotatable in 2 axis
    Range: -1999...+9999
    Features: min/max values, selectable units and decimal point, archive chart, averaging
    Optional: PNP (high side) switch output
  • $549

    Smart pressure transmitter with HART communication

    Ranges: 15 mbar up to 400 bar
    Accuracy: up to ±0.075%
    Approvals: Ex ia, Ex d

Products

Company

Special Economic Zone Technopolis Moscow

42-5, Volgogradsky prospect, Suite I №1.6-23Н, floor 2
Moscow, 109316, Russia

+7 (495) 796-92-20

ISO 9001:2015 CERTIFIED

“ New products development, constant improvements, qualified service and technical support are our priorities ”
