APZ 3420

$199

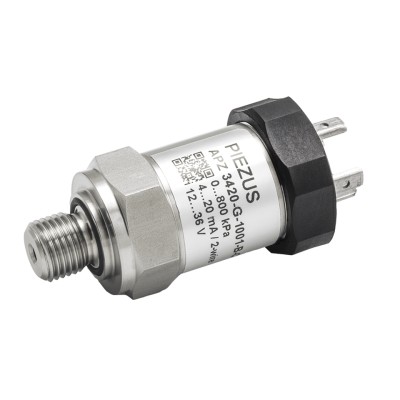

Standard industrial pressure transmitter

Features

Pressure ranges: 40 mbar up to 600 bar
Basic accuracy: ±0.25%
Outputs: 4...20 mA (option – Ex ia); 0...20 mA; 0...10 V; 0...5 V; HART; RS-485/Modbus RTU
Sensor: silicon piezoresistive
Pressure port: G1/2”; G1/4”; 1/2” NPT; 1/4” NPT; М20х1.5 etc.
Media temperatures: -40…+125 °C
Ambient temperatures: -40…+85 °C
Optional field housing with/without graphics display

Description

APZ 3420 is our flagship general purpose industrial pressure transmitter. High quality silicon piezoresistive sensor with a stainless steel diaphragm, versatile design and wide spectrum of variations make APZ 3420 a perfect fit for virtually any industrial application.

Code configurator

Order code:

  • -DZ 10
    DZ 10
    Pressure snubber
    Pressure range: up to 700 bar
    Operation principle: throttling
    Temperature range: up to +250 °C
    Housing material: stainless steel
  • -ZCON 100
    ZCON 100
    -ZCON 100
    Zero trim and range selection device
    Ranges: selection of up to 3 ranges, zero trim
    Supported transmitters: multi-range
    Power: 4xAA batteries
  • -ANZ 200
    ANZ 200
    -ANZ 200
    Plug-in display for transmitters with 4-20 mA output
    Compatibility: 4-20 mA transmitters with DIN 43650А connectors
    Display: graphics OLED, rotatable in 2 axis
    Range: -1999...+9999
    Features: min/max values, selectable units and decimal point, archive chart, averaging
    Optional: PNP (high side) switch output
Mechanical connection
Electrical connection
Model file
