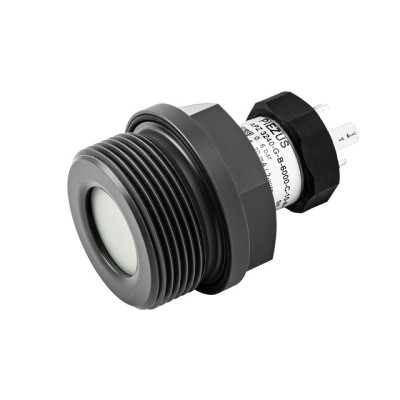

APZ 3240

$499
Precision pressure transmitter for aggressive/viscous/abrasive media

Features

Pressure ranges: 40 mbar to 70 bar
Basic accuracy: ±0.25%
Sensor: high precision ceramic capacitive
Pressure port: stainless steel, PVC, PVDF Flush diaphragm
Outputs: 4...20 mA (option – Ex ia), HART, RS-485/Modbus RTU;
Pressure port: G1-1/2”,
Pressure port materials: stainless steel (for abrasive media), plastic (for aggressive media);
Media temperatures: -20...+125 °C; (*)
Ambient temperatures: -40...+85 °C (*)
Optional field housing with/without graphics display

(*) plastic housings have reduced temperature range

Description

APZ 3240 is based on a high precision capacitive ceramic oil free sensor with ranges starting at 40 mbar for measuring liquid levels as low as 40 cm. Flush ceramic diaphragm makes it a perfect fit for the viscous, aggressive(*) and abrasive media. Optionally, plastic pressure port is available for certain alkalis and acids. Oil free dry pressure cell makes APZ 3240 suitable for environments with high oxygen levels and allows to measure gases with high O2 concentrations.

(*) please consult the manufacturer for particular media compatibility

Code configurator

Order code:

  • -ZCON 100
    ZCON 100
    -ZCON 100
    Zero trim and range selection device
    Ranges: selection of up to 3 ranges, zero trim
    Supported transmitters: multi-range
    Power: 4xAA batteries
  • -ANZ 200
    ANZ 200
    -ANZ 200
    Plug-in display for transmitters with 4-20 mA output
    Compatibility: 4-20 mA transmitters with DIN 43650А connectors
    Display: graphics OLED, rotatable in 2 axis
    Range: -1999...+9999
    Features: min/max values, selectable units and decimal point, archive chart, averaging
    Optional: PNP (high side) switch output
Mechanical connection Electrical connection Model file
G 1-1/2" DIN 3852, material: PVCBinder 723APZ3240_G1-1'2DIN-PVC_Binder723.step
G 1-1/2" DIN 3852, material: PVCBuccaneerAPZ3240_G1-1'2DIN-PVC_Buccaneer.step
G 1-1/2" DIN 3852, material: PVCCable GlandAPZ3240_G1-1'2DIN-PVC_CableGland.step
G 1-1/2" DIN 3852, material: PVCDIN 43650 AAPZ3240_G1-1'2DIN-PVC_DIN43650A.step
G 1-1/2" DIN 3852, material: PVCM12x1 angularAPZ3240_G1-1'2DIN-PVC_M12x1-angular.step
G 1-1/2" DIN 3852, material: PVCM12x1 straightAPZ3240_G1-1'2DIN-PVC_M12x1-straight.step
G 1-1/2" DIN 3852, material: PVCStainlessSteelCableGlandAPZ3240_G1-1'2DIN-PVC_StainlessSteelCableGland.step
G 1-1/2" DIN 3852, material: PVDFBinder 723APZ3240_G1-1'2DIN-PVDF_Binder723.step
G 1-1/2" DIN 3852, material: PVDFBuccaneerAPZ3240_G1-1'2DIN-PVDF_Buccaneer.step
G 1-1/2" DIN 3852, material: steelCable GlandAPZ3240_G1-1'2DIN-steel_CableGland.step
G 1-1/2" DIN 3852, material: steelDIN 43650 AAPZ3240_G1-1'2DIN-steel_DIN43650A.step
G 1-1/2" DIN 3852, material: steelM12x1 angularAPZ3240_G1-1'2DIN-steel_M12x1-angular.step
G 1-1/2" DIN 3852, material: steelM12x1 straightAPZ3240_G1-1'2DIN-steel_M12x1-straight.step
G 1-1/2" DIN 3852, material: steelStainlessSteelCableGlandAPZ3240_G1-1'2DIN-steel_StainlessSteelCableGland.step
