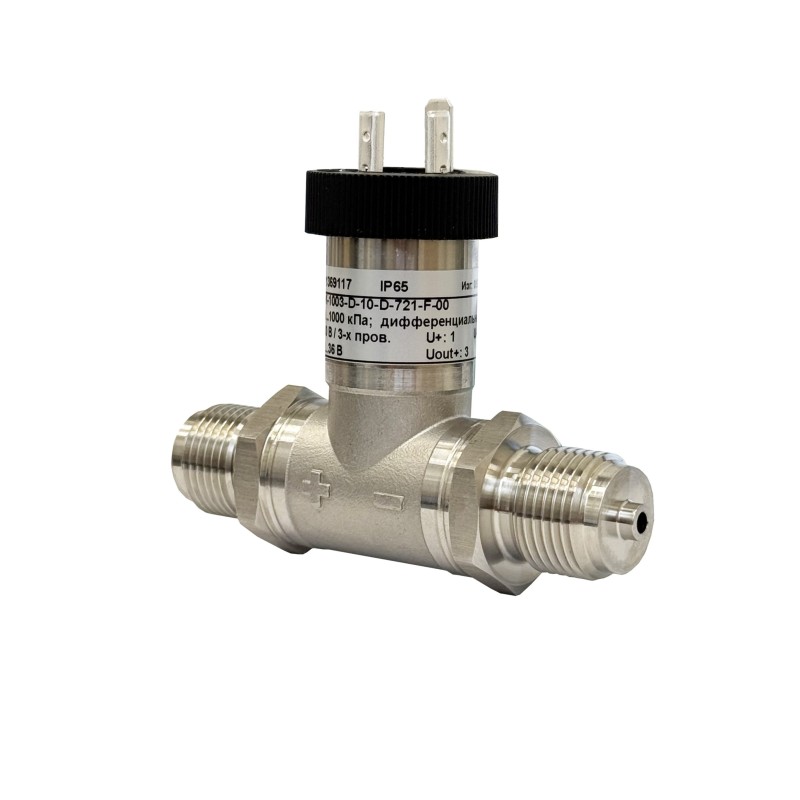

APZ 3020

$399
Industrial differential pressure transmitter

Features

Ranges: 100 mbar up to 25 bar
Pressure type: Wet/Wet true differential
Accuracy: up to ±0.25%
Output: 4...20 mA (option – Ex ia); 0...20 mA; 0...10 V; 0...5 V; HART; RS-485/Modbus RTU
Sensor: true differential silicon piezoresistive
Pressure port: 7/16”-20 UNF, G 1/4” axial, radial, etc
Media temperatures: -40…+125 °C
Ambient temperatures: -40…+85 °C

Description

APZ 3020 industrial differential pressure transmitter is based on a silicon piezoresistive pressure sensor. True differential wet-wet technology allows to obtain high precision measurements of the differential pressure even if the static pressure exceeds it by the two orders of magnitude. Compact design of the APZ 3020 and it’s radial and axial pressure port connection options make it a great candidate for use in constrained spaces.

Code configurator

Order code:

  • -DZ 10
    DZ 10
    Pressure snubber
    Pressure range: up to 700 bar
    Operation principle: throttling
    Temperature range: up to +250 °C
    Housing material: stainless steel
  • -ZCON 100
    ZCON 100
    -ZCON 100
    Zero trim and range selection device
    Ranges: selection of up to 3 ranges, zero trim
    Supported transmitters: multi-range
    Power: 4xAA batteries
  • -ANZ 200
    ANZ 200
    -ANZ 200
    Plug-in display for transmitters with 4-20 mA output
    Compatibility: 4-20 mA transmitters with DIN 43650А connectors
    Display: graphics OLED, rotatable in 2 axis
    Range: -1999...+9999
    Features: min/max values, selectable units and decimal point, archive chart, averaging
    Optional: PNP (high side) switch output
Mechanical connection Electrical connection Model file
G 1/2" EN 837Binder 723APZ3020_G1'2EN-axial_Binder.step
G 1/2" EN 837BuccaneerAPZ3020_G1'2EN-axial_Buccaneer.step
G 1/2" EN 837Cable GlandAPZ3020_G1'2EN-axial_CableGland.step
G 1/2" EN 837DIN 43650 AAPZ3020_G1'2EN-axial_DIN43650A.step
G 1/2" EN 837M12x1 angularAPZ3020_G1'2EN-axial_M12x1-angular.step
G 1/2" EN 837M12x1 straightAPZ3020_G1'2EN-axial_M12x1-straight.step
G 1/2" EN 837StainlessSteelCableGlandAPZ3020_G1'2EN-axial_StainlessSteelCableGland.step
M20x1,5 EN 837Binder 723APZ3020_M20x1,5EN-axial_Binder.step
M20x1,5 EN 837BuccaneerAPZ3020_M20x1,5EN-axial_Buccaneer.step
M20x1,5 EN 837Cable GlandAPZ3020_M20x1,5EN-axial_CableGland.step
M20x1,5 EN 837DIN 43650 AAPZ3020_M20x1,5EN-axial_DIN43650A.step
M20x1,5 EN 837M12x1 angularAPZ3020_M20x1,5EN-axial_M12x1-angular.step
M20x1,5 EN 837M12x1 straightAPZ3020_M20x1,5EN-axial_M12x1-straight.step
M20x1,5 EN 837StainlessSteelCableGlandAPZ3020_M20x1,5EN-axial_StainlessSteelCableGland.step
G 1/4" femaleBinder 723APZ3020_G1'4-internal-axial_Binder.step
G 1/4" femaleBuccaneerAPZ3020_G1'4-internal-axial_Buccaneer.step
G 1/4" femaleCable GlandAPZ3020_G1'4-internal-axial_CableGland.step
G 1/4" femaleDIN 43650 AAPZ3020_G1'4-internal-axial_DIN43650A.step
G 1/4" femaleM12x1 angularAPZ3020_G1'4-internal-axial_M12x1-angular.step
G 1/4" femaleM12x1 straightAPZ3020_G1'4-internal-axial_M12x1-straight.step
G 1/4" femaleStainlessSteelCableGlandAPZ3020_G1'4-internal-axial_StainlessSteelCableGland.step
M12x1,5 EN 837Binder 723APZ3020_M12x1,5EN-axial_Binder.step
M12x1,5 EN 837BuccaneerAPZ3020_M12x1,5EN-axial_Buccaneer.step
M12x1,5 EN 837Cable GlandAPZ3020_M12x1,5EN-axial_CableGland.step
M12x1,5 EN 837DIN 43650 AAPZ3020_M12x1,5EN-axial_DIN43650A.step
M12x1,5 EN 837M12x1 angularAPZ3020_M12x1,5EN-axial_M12x1-angular.step
M12x1,5 EN 837M12x1 straightAPZ3020_M12x1,5EN-axial_M12x1-straight.step
M12x1,5 EN 837StainlessSteelCableGlandAPZ3020_M12x1,5EN-axial_StainlessSteelCableGland.step
