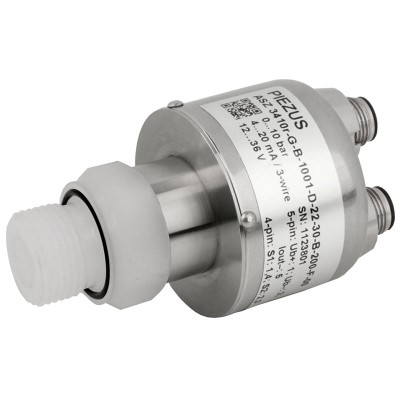

ASZ 3410 r

From $229
Electronic pressure switch with SPDT relays for aggressive/viscous/abrasive media

Features

Pressure ranges: 0.6 mbar up to 600 bar
Setpoints, hysteresis: adjustable (*)
Accuracy: ±0.5%
Relay outputs: SPDT, 2 pcs
Analog output: 4...20 mA (3-wire);
Sensor: ceramic thick film
Pressure port: G 3/4” (for flush diaphragm); G1/2”; G1/4”; 1/4” NPT; M20x1.5; etc
Pressure port materials: stainless steel (for abrasive media), plastic (for aggressive media);
Media temperatures: -40...+125 °C
Ambient temperatures: -40...+70 °C

(*) set points can be set either by factory or by user via PCON 200 adapter (sold separately)

Description

ASZ 3410 r is an electronic pressure switch with traditional SPDT relay outputs. Ceramic thick film sensor makes it a great choice for the aggressive(*) media. Flush ceramic diaphragm and the open port options are available for the viscous and/or abrasive media. Microcontroller based electronic board provide a highly flexible and configurable solution for local equipment control. User is able to choose from a wide variety of relay triggering algorithms and adjust setpoints and hysteresis values (**). Additionally, an industry standard 4-20 mA analog output is provided, thus ASZ 3410 r is a pressure switch and a transmitter at the same time, making this model stand out in comparision to conventional mechanical switches.

(*) please consult the manufacturer for particular media compatibility
(**) set points and other parameters can be set either by factory or by user via PCON 200 adapter (sold separately)

Applications

Aggressive media(*)
Abrasive media
Viscous media
Sewage, waste water, sludge
Tank liquid level maintaining

(*) please consult the manufacturer for particular media compatibility

Code configurator

Order code:

  • Pressure snubber
    Pressure range: up to 700 bar
    Operation principle: throttling
    Temperature range: up to +250 °C
    Housing material: stainless steel
  • Programming adapter
    Supported devices: electronic pressure switches
    Transmitter interface: M12x1, 5-pin
    PC interface: USB-A
    PC software: windows application
