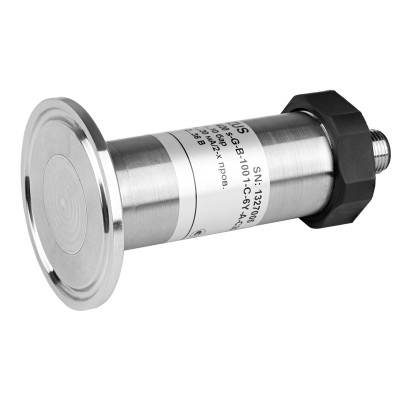

Sanitary pressure transmitter with flush diaphragm
Features
Pressure ranges: 100 mbar up to 40 bar
Basic accuracy: up to ±0.25%
Outputs: 4...20 mA (option Ex ia); 0...20 mA; 0...10 V; 0...5 V; HART; RS-485/Modbus RTU
Sensor: silicon piezoresistive
Pressure port: taper socket with groved union per as DIN 11851, clamping socket as per DIN 32676, Tri-Clamp (*)
Fill fluid: Food grade oil, FDA approved (*)
Media temperatures: -40…+125 °C
Ambient temperatures: -40…+85 °C
Optional field housing with/without graphics display
Optional heat sink
(*) upon request
Description
APZ 3420 s is a sanitary version of our standard pressure transmitter with the flush diaphragm . All-welded design and smooth surfaces ensure absence of zones for potential contaminants collection. Process connection options, taper socket with grooved union nut as per DIN 11851, clamping socket as per DIN 32676 provide for quick disconnection for diaphragm cleaning. Optionally, APZ 3420 s can be equipped with a heat sink element for high temperature media applications.
- Zero trim and range selection deviceRanges: selection of up to 3 ranges, zero trim
Supported transmitters: multi-range
Power: 4xAA batteries - Plug-in display for transmitters with 4-20 mA outputCompatibility: 4-20 mA transmitters with DIN 43650А connectors
Display: graphics OLED, rotatable in 2 axis
Range: -1999...+9999
Features: min/max values, selectable units and decimal point, archive chart, averaging
Optional: PNP (high side) switch output
Mechanical connection
Electrical connection
3D model file
