APZ 3420
m
$499

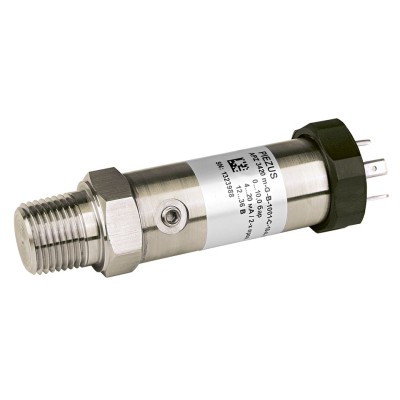

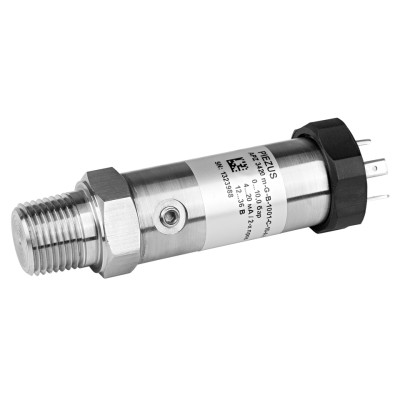

Pressure transmitter with flush diaphragm for viscous media
Features
Pressure ranges: 100 mbar up to 600 bar
Basic accuracy: up to ±0.25%
Outputs: 4...20 mA (option – Ex ia); 0...20 mA; 0...10 V; 0...5 V; HART; RS-485/Modbus RTU
Sensor: silicon piezoresistive
Pressure port: G1/2”; G1/4”; 1/2” NPT; 1/4” NPT; М20х1.5 etc.
Media temperatures: -40…+125 °C
Ambient temperatures: -40…+85 °C
Optional field housing with/without graphics display
Optional heat sink for media up to 300 °C
Description
APZ 3420 m is a flush diaphragm version of our standard pressure transmitter. Due to it’s optimized design, it does not have dead zones that can get blocked by the viscous and pasty media. Optionally, APZ 3420 m can be equipped with a heat sink element for high temperature media applications.
- Plug-in display for transmitters with 4-20 mA outputCompatibility: 4-20 mA transmitters with DIN 43650А connectors
Display: graphics OLED, rotatable in 2 axis
Range: -1999...+9999
Features: min/max values, selectable units and decimal point, archive chart, averaging
Optional: PNP (high side) switch output
Mechanical connection
Electrical connection
3D model file
G 1-1/2" DIN 3852 flush diaphragm
CableGlandM20x1,5
G 1-1/2" DIN 3852 flush diaphragm
M12x1 straight
G 1-1/2" DIN 3852 flush diaphragm
Cable Gland M20x1,5
G 1-1/2" DIN 3852 flush diaphragm
Cable Gland M20x1,5
G 1-1/2" DIN 3852 flush diaphragm
M12x1 angular
G 1-1/2" DIN 3852 flush diaphragm
M12x1 angular
G 1-1/2" DIN 3852 flush diaphragm
M12x1 straight
G 1-1/2" DIN 3852 flush diaphragm
M12x1 straight
G 1/2" DIN 3852 flush diaphragm
CableGlandM20x1,5
G 1/2" DIN 3852 flush diaphragm
Cable Gland M20x1,5
G 1/2" DIN 3852 flush diaphragm
Cable Gland M20x1,5
G 1/2" DIN 3852 flush diaphragm
M12x1 angular
G 1/2" DIN 3852 flush diaphragm
M12x1 straight
G 1/2" DIN 3852 solid flush diaphragm
Cable Gland
G 1/2" DIN 3852 solid flush diaphragm
M12x1 angular
G 1/2" DIN 3852 solid flush diaphragm
M12x1 straight
G 1/2" DIN 3852 solid flush diaphragm
Stainless Steel Cable Gland
G 1/2" DIN 3852 solid flush diaphragm
StainlessSteelCableGland
G 1/2" DIN 3852 solid flush diaphragm
CableGlandM20x1,5
G 1/2" DIN 3852 solid flush diaphragm
CableGlandM20x1,5
G 1/2" DIN 3852 solid flush diaphragm
M12x1 angular
G 1/2" DIN 3852 solid flush diaphragm
M12x1 straight
G 1/2" DIN 3852 solid flush diaphragm
M12x1 straight
G 1/2" DIN 3852 solid flush diaphragm
Cable Gland M20x1,5
G 1/2" DIN 3852 solid flush diaphragm
Cable Gland M20x1,5
G 1/2" DIN 3852 solid flush diaphragm
M12x1 angular
G 1/2" DIN 3852 solid flush diaphragm
M12x1 angular
G 1/2" DIN 3852 solid flush diaphragm
M12x1 straight
G 1/2" DIN 3852 solid flush diaphragm
M12x1 straight
G 1" DIN 3852 flush diaphragm
Stainless Steel Cable Gland
G 1" DIN 3852 flush diaphragm
StainlessSteelCableGland
G 1" DIN 3852 flush diaphragm
Cable Gland M20x1,5
G 1" DIN 3852 flush diaphragm
Cable Gland M20x1,5
G 1" DIN 3852 flush diaphragm
M12x1 angular
G 1" DIN 3852 flush diaphragm
M12x1 straight
G 1" DIN 3852 solid flush diaphragm
M12x1 angular
G 1" DIN 3852 solid flush diaphragm
M12x1 straight
G 1" DIN 3852 solid flush diaphragm
Stainless Steel Cable Gland
G 1" DIN 3852 solid flush diaphragm
StainlessSteelCableGland
G 1" DIN 3852 solid flush diaphragm
CableGlandM20x1,5
G 1" DIN 3852 solid flush diaphragm
CableGlandM20x1,5
G 1" DIN 3852 solid flush diaphragm
M12x1 angular
G 1" DIN 3852 solid flush diaphragm
M12x1 straight
G 1" DIN 3852 solid flush diaphragm
Cable Gland M20x1,5
G 1" DIN 3852 solid flush diaphragm
Cable Gland M20x1,5
G 1" DIN 3852 solid flush diaphragm
M12x1 angular
G 1" DIN 3852 solid flush diaphragm
M12x1 angular
G 1" DIN 3852 solid flush diaphragm
M12x1 straight
G 1" DIN 3852 solid flush diaphragm
M12x1 straight
G 3/4" DIN 3852 flush diaphragm
Stainless Steel Cable Gland
G 3/4" DIN 3852 flush diaphragm
StainlessSteelCableGland
G 3/4" DIN 3852 flush diaphragm
CableGlandM20x1,5
G 3/4" DIN 3852 flush diaphragm
Cable Gland M20x1,5
G 3/4" DIN 3852 flush diaphragm
Cable Gland M20x1,5
G 3/4" DIN 3852 flush diaphragm
M12x1 angular
G 3/4" DIN 3852 flush diaphragm
M12x1 straight
M20x1,5 DIN 3852 flush diaphragm
M12x1 straight
M20x1,5 DIN 3852 flush diaphragm
Stainless Steel Cable Gland
M20x1,5 DIN 3852 flush diaphragm
StainlessSteelCableGland
M20x1,5 DIN 3852 flush diaphragm
CableGlandM20x1,5
M20x1,5 DIN 3852 flush diaphragm
M12x1 straight
M20x1,5 DIN 3852 flush diaphragm
Cable Gland M20x1,5
M20x1,5 DIN 3852 flush diaphragm
Cable Gland M20x1,5
M20x1,5 DIN 3852 flush diaphragm
M12x1 angular
M20x1,5 DIN 3852 flush diaphragm
M12x1 angular
M20x1,5 DIN 3852 flush diaphragm
M12x1 straight
M20x1,5 DIN 3852 flush diaphragm
M12x1 straight
