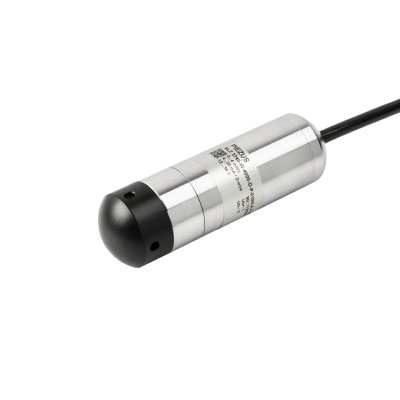

ALZ 3740

$449
Precision submersible pressure transmitter for viscous media

Features

Ranges: 0.4 mH2O up to 100 mH2O
Basic accuracy: ±0.25%
Sensor: high precision ceramic capacitive
Probe: Ø40 mm, AISI 316L
Output signal: 4...20 mA; RS-485/Modbus RTU;
Media temperatures: -20…+70 °C
Optional: Ex ia, HART, Pt100 temperature sensor

Description

ALZ 3740 is based on a high precision capacitive ceramic oil free sensor with ranges starting at 40 mbar for measuring liquid levels as low as 40 cm. High overload capacity of the sensor, flush ceramic diaphragm and stainless steel housing make APZ 3740 a transmitter of choice for the viscous and abrasive media. For even better compatibility with aggressive media please refer to the similar model APZ 3742 with the plastic housing.

Code configurator

Order code:

  • -BZ 05 / BZ 10
    BZ 05 / BZ 10
    Dry air junction box for submersible transmitters
    Port 1: cable gland, for vented transmitter cable Ø6...10 mm
    Port 2: cable gland, for equipment cable Ø6...10 mm
    Air venting: membrane air vent valve
    Housing: aluminum
    Features: 10kV surge protection
    Optional: Pt100 transmitter
  • -KZ 05
    KZ 05
    -KZ 05
    Anchoring clamp for submersible transmitter
    Cable diameter: 5.5-10.5 mm
    Materials: stainless steel housing, PA jaws
    Bearing capacity: 250 kg
Implementation Model file
StandardALZ3740_standard.step
    See Also
    • -ALZ 3742
      ALZ 3742
      -ALZ 3742
      $349
      Precision submersible pressure transmitter for aggressive media
      Ranges: 0.4 mH2O up to 100 mH2O
      Basic accuracy: ±0.25%
      Sensor: high precision ceramic capacitive
      Probe: Ø40 mm, plastic
      Optional: Pt100
    • -ALZ 3821
      ALZ 3821
      -ALZ 3821
      $399
      Precision submersible pressure transmitter with detachable probe
      Ranges: 1 mH2O up to 250 mH2O
      Basic accuracy: ±0.1%
      Probe: Ø27 mm
      Optional: Ex ia, HART, Modbus, Pt100
    • -BZ 05 / BZ 10
      BZ 05 / BZ 10
      $99
      Dry air junction box for submersible transmitters
      Port 1: cable gland, for vented transmitter cable Ø6...10 mm
      Port 2: cable gland, for equipment cable Ø6...10 mm
      Air venting: membrane air vent valve
      Housing: aluminum
      Features: 10kV surge protection
      Optional: Pt100 transmitter
    • -KZ 05
      KZ 05
      -KZ 05
      $49
      Anchoring clamp for submersible transmitter
      Cable diameter: 5.5-10.5 mm
      Materials: stainless steel housing, PA jaws
      Bearing capacity: 250 kg
