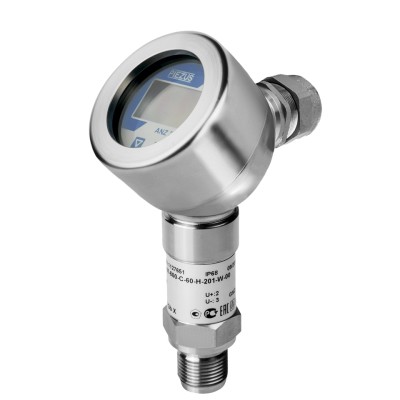

APZ 3420 x

$399
Compact explosion proof / flame proof pressure transmitter

Features

Pressure ranges: 40 mbar up to 600 bar
Pressure types: gauge, absolute
Basic accuracy: ±0.25%
Outputs: 4...20 mA; 0...20 mA; 0...10 V; 0...5 V; HART;
RS-485/Modbus RTU
Sensor: silicon piezoresistive
Pressure port: G1/2”; G1/4”; 1/2” NPT; 1/4” NPT; М20х1.5 etc.
Media temperatures: -40…+125 °C
Ambient temperatures: -40…+85 °C

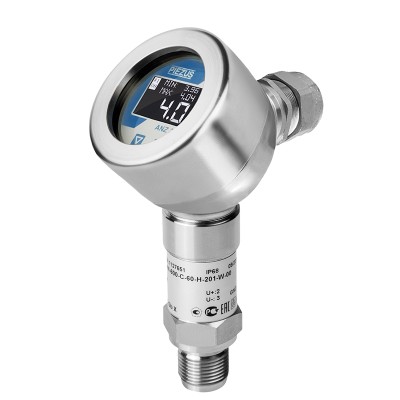

Optional graphics display

Description

APZ 3420 x is a flame proof version of our standard industrial pressure transmitter. Reliable piezoresistive sensor technology combined with fully welded stainless steel case allowed to offer a versatile yet cost effective transmitter in a Exd compact form factor.

Code configurator

Order code:

Mechanical connection Electrical connection Model file
G 1/2" DIN 3852CableGlandM20x1,5ExdAPZ3420x_G1'2DIN_CableGlandM20x1,5Exd.step
G 1/2" DIN 3852CableGlandM20x1,5ExdAPZ3420x_G1'2DIN_CableGlandM20x1,5Exd_display.step
G 1/2" EN 837CableGlandM20x1,5ExdAPZ3420x_G1'2EN_CableGlandM20x1,5Exd.step
G 1/2" EN 837CableGlandM20x1,5ExdAPZ3420x_G1'2EN_CableGlandM20x1,5Exd_display.step
G 1/4" DIN 3852CableGlandM20x1,5ExdAPZ3420x_G1'4DIN_CableGlandM20x1,5Exd.step
G 1/4" DIN 3852CableGlandM20x1,5ExdAPZ3420x_G1'4DIN_CableGlandM20x1,5Exd_display.step
G 1/4" EN 837CableGlandM20x1,5ExdAPZ3420x_G1'4EN_CableGlandM20x1,5Exd.step
G 1/4" EN 837CableGlandM20x1,5ExdAPZ3420x_G1'4EN_CableGlandM20x1,5Exd_display.step
M10x1 DIN 3852CableGlandM20x1,5ExdAPZ3420x_M10x1DIN_CableGlandM20x1,5Exd.step
M10x1 DIN 3852CableGlandM20x1,5ExdAPZ3420x_M10x1DIN_CableGlandM20x1,5Exd_display.step
M12x1 DIN 3852CableGlandM20x1,5ExdAPZ3420x_M12x1DIN_CableGlandM20x1,5Exd.step
M12x1 DIN 3852CableGlandM20x1,5ExdAPZ3420x_M12x1DIN_CableGlandM20x1,5Exd_display.step
M20x1,5 DIN 3852CableGlandM20x1,5ExdAPZ3420x_M20x1,5DIN_CableGlandM20x1,5Exd.step
M20x1,5 DIN 3852CableGlandM20x1,5ExdAPZ3420x_M20x1,5DIN_CableGlandM20x1,5Exd_display.step
M20x1,5 EN 837CableGlandM20x1,5ExdAPZ3420x_M20x1,5EN_CableGlandM20x1,5Exd.step
M20x1,5 EN 837CableGlandM20x1,5ExdAPZ3420x_M20x1,5EN_CableGlandM20x1,5Exd_display.step
1/4" NPTCableGlandM20x1,5ExdAPZ3420x_1'4NPT_CableGlandM20x1,5Exd.step
1/4" NPTCableGlandM20x1,5ExdAPZ3420x_1'4NPT_CableGlandM20x1,5Exd_display.step
1/2" NPTCableGlandM20x1,5ExdAPZ3420x_1'2NPT_CableGlandM20x1,5Exd.step
1/2" NPTCableGlandM20x1,5ExdAPZ3420x_1'2NPT_CableGlandM20x1,5Exd_display.step
M12x1 EN 837CableGlandM20x1,5ExdAPZ3420x_M12x1EN_CableGlandM20x1,5Exd.step
M12x1 EN 837CableGlandM20x1,5ExdAPZ3420x_M12x1EN_CableGlandM20x1,5Exd_display.step
