AMZ 5055

$649
Smart differential pressure transmitter with HART communication

Description

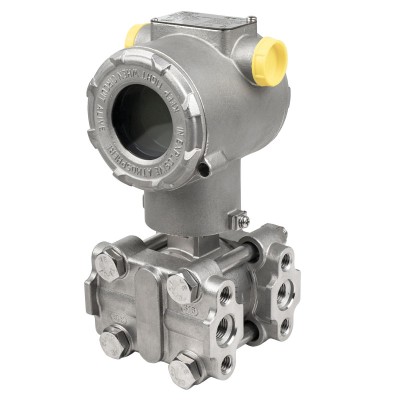

The AMZ 5055 is a high-precision differential pressure transmitter based on a capacitive cell, providing excellent performance, significant overload capability, and long-term stability. Most device parameters (including lower and upper range limits) can be adjusted locally in hazardous areas. The device housing can be rotated around its vertical axis for easy installation and reading. The display can be rotated around an axis perpendicular to its plane in 90° increments.

Code configurator

Order code:

Use this code when contacting us

    See Also
    • -AMZ 5450
      AMZ 5450
      $549

      Smart pressure transmitter with HART communication

      Pressure ranges: 0...15 mbar to 0...600 bar
      Accuracy: up to ±0.075% of span
      Explosion protection: Ex ia, Ex d
    • -APZ 3420 x
      APZ 3420 x
      $399
      Compact explosion proof /
      flame proof pressure transmitter
      with an optional
      discrete (relay) output
      Ranges: 0...40 mbar to 0...600 bar
      Basic accuracy: ±0.25%
      Optional graphics display
      Approvals: Ex ia, Ex d
    • -APZ 4420
      APZ 4420
      $1,400
      Heavy duty
      pressure transmitter
      Ranges: 5000 psi up to 15000 psi
      Basic accuracy: ±0.5%
      Connection: WEKO® 2" (1502)
      Optional: Ex ia
