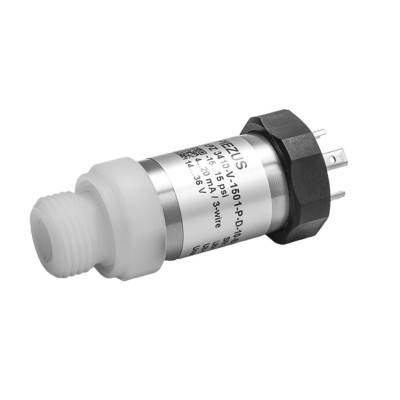

APZ 3410

$199
Industrial pressure transmitter for aggressive/viscous/abrasive media

Features

Pressure ranges: 0.6 bar up to 600 bar
Accuracy: ±0.5%
Outputs: 4...20 mA (option – Ex ia); 0...20 mA; 0...10 V; 0...5 V; 0.5...4.5 V
Sensor: ceramic thick film
Pressure port: G 3/4” (for flush diaphragm); G1/2ˮ; G1/4ˮ; 1/2ˮ NPT; 1/4ˮ NPT; M20x1.5; etc.
Pressure port materials: stainless steel (for abrasive media), plastic (for aggressive media)
Media temperatures: -20...+135 °C (*)
Ambient temperatures: -40...+85 °C (*)
Optional field housing with/without graphics display

(*) plastic housings have reduced temperature range

Description

APZ 3410 is based on a ceramic oil free sensor to withstand aggressive(*) media. Optionally, plastic process connection is available for certain alkalis and acids. Flush ceramic diaphragm and the open port options are available for the viscous and/or abrasive media. Oil free dry pressure cell makes APZ 3410 suitable for environments with high oxygen levels and allows to measure gases with high O2 concentrations.

(*) please consult the manufacturer for particular media compatibility

Code configurator

Order code:

  • -DZ 10
    DZ 10
    Pressure snubber
    Pressure range: up to 700 bar
    Operation principle: throttling
    Temperature range: up to +250 °C
    Housing material: stainless steel
  • -ZCON 100
    ZCON 100
    -ZCON 100
    Zero trim and range selection device
    Ranges: selection of up to 3 ranges, zero trim
    Supported transmitters: multi-range
    Power: 4xAA batteries
  • -ANZ 200
    ANZ 200
    -ANZ 200
    Plug-in display for transmitters with 4-20 mA output
    Compatibility: 4-20 mA transmitters with DIN 43650А connectors
    Display: graphics OLED, rotatable in 2 axis
    Range: -1999...+9999
    Features: min/max values, selectable units and decimal point, archive chart, averaging
    Optional: PNP (high side) switch output
Mechanical connection Electrical connection Model file
G 1/2" DIN 3852Binder 723APZ3410_G1'2DIN_Binder723.step
G 1/2" DIN 3852BuccaneerAPZ3410_G1'2DIN_Buccaneer.step
G 1/2" DIN 3852Cable GlandAPZ3410_G1'2DIN_CableGland.step
G 1/2" DIN 3852DIN 43650 AAPZ3410_G1'2DIN_DIN43650A.step
G 1/2" DIN 3852M12x1 angularAPZ3410_G1'2DIN_M12x1-angular.step
G 1/2" DIN 3852M12x1 straightAPZ3410_G1'2DIN_M12x1-straight.step
G 1/2" DIN 3852StainlessSteelCableGlandAPZ3410_G1'2DIN_StainlessSteelCableGland.step
G 1/2" EN 837Binder 723APZ3410_G1'2EN_Binder723.step
G 1/2" EN 837BuccaneerAPZ3410_G1'2EN_Buccaneer.step
G 1/2" EN 837Cable GlandAPZ3410_G1'2EN_CableGland.step
G 1/2" EN 837DIN 43650 AAPZ3410_G1'2EN_DIN43650A.step
G 1/2" EN 837M12x1 angularAPZ3410_G1'2EN_M12x1-angular.step
G 1/2" EN 837M12x1 straightAPZ3410_G1'2EN_M12x1-straight.step
G 1/2" EN 837StainlessSteelCableGlandAPZ3410_G1'2EN_StainlessSteelCableGland.step
G 1/4" DIN 3852Binder 723APZ3410_G1'4DIN_Binder723.step
G 1/4" DIN 3852BuccaneerAPZ3410_G1'4DIN_Buccaneer.step
G 1/4" DIN 3852Cable GlandAPZ3410_G1'4DIN_CableGland.step
G 1/4" DIN 3852DIN 43650 AAPZ3410_G1'4DIN_DIN43650A.step
G 1/4" DIN 3852M12x1 angularAPZ3410_G1'4DIN_M12x1-angular.step
G 1/4" DIN 3852M12x1 straightAPZ3410_G1'4DIN_M12x1-straight.step
G 1/4" DIN 3852StainlessSteelCableGlandAPZ3410_G1'4DIN_StainlessSteelCableGland.step
G 1/4" EN 837Binder 723APZ3410_G1'4EN_Binder723.step
G 1/4" EN 837BuccaneerAPZ3410_G1'4EN_Buccaneer.step
G 1/4" EN 837Cable GlandAPZ3410_G1'4EN_CableGland.step
G 1/4" EN 837DIN 43650 AAPZ3410_G1'4EN_DIN43650A.step
G 1/4" EN 837M12x1 angularAPZ3410_G1'4EN_M12x1-angular.step
G 1/4" EN 837M12x1 straightAPZ3410_G1'4EN_M12x1-straight.step
G 1/4" EN 837StainlessSteelCableGlandAPZ3410_G1'4EN_StainlessSteelCableGland.step
M10x1 DIN 3852Binder 723APZ3410_M10x1DIN_Binder723.step
M10x1 DIN 3852BuccaneerAPZ3410_M10x1DIN_Buccaneer.step
M10x1 DIN 3852Cable GlandAPZ3410_M10x1DIN_CableGland.step
M10x1 DIN 3852DIN 43650 AAPZ3410_M10x1DIN_DIN43650A.step
M10x1 DIN 3852M12x1 angularAPZ3410_M10x1DIN_M12x1-angular.step
M10x1 DIN 3852M12x1 straightAPZ3410_M10x1DIN_M12x1-straight.step
M10x1 DIN 3852StainlessSteelCableGlandAPZ3410_M10x1DIN_StainlessSteelCableGland.step
M12x1,5 DIN 3852Binder 723APZ3410_M12x1,5DIN_Binder723.step
M12x1,5 DIN 3852BuccaneerAPZ3410_M12x1,5DIN_Buccaneer.step
M12x1,5 DIN 3852Cable GlandAPZ3410_M12x1,5DIN_CableGland.step
M12x1,5 DIN 3852DIN 43650 AAPZ3410_M12x1,5DIN_DIN43650A.step
M12x1,5 DIN 3852M12x1 angularAPZ3410_M12x1,5DIN_M12x1-angular.step
M12x1,5 DIN 3852M12x1 straightAPZ3410_M12x1,5DIN_M12x1-straight.step
M12x1,5 DIN 3852StainlessSteelCableGlandAPZ3410_M12x1,5DIN_StainlessSteelCableGland.step
M12x1,25 DIN 3852Binder 723APZ3410_M12x1,25DIN_Binder723.step
M12x1,25 DIN 3852BuccaneerAPZ3410_M12x1,25DIN_Buccaneer.step
M12x1,25 DIN 3852Cable GlandAPZ3410_M12x1,25DIN_CableGland.step
M12x1,25 DIN 3852DIN 43650 AAPZ3410_M12x1,25DIN_DIN43650A.step
M12x1,25 DIN 3852M12x1 angularAPZ3410_M12x1,25DIN_M12x1-angular.step
M12x1,25 DIN 3852M12x1 straightAPZ3410_M12x1,25DIN_M12x1-straight.step
M12x1,25 DIN 3852StainlessSteelCableGlandAPZ3410_M12x1,25DIN_StainlessSteelCableGland.step
M12x1 DIN 3852Binder 723APZ3410_M12x1DIN_Binder723.step
M12x1 DIN 3852BuccaneerAPZ3410_M12x1DIN_Buccaneer.step
M12x1 DIN 3852Cable GlandAPZ3410_M12x1DIN_CableGland.step
M12x1 DIN 3852DIN 43650 AAPZ3410_M12x1DIN_DIN43650A.step
M12x1 DIN 3852M12x1 angularAPZ3410_M12x1DIN_M12x1-angular.step
M12x1 DIN 3852M12x1 straightAPZ3410_M12x1DIN_M12x1-straight.step
M12x1 DIN 3852StainlessSteelCableGlandAPZ3410_M12x1DIN_StainlessSteelCableGland.step
M20x1,5 DIN 3852Binder 723APZ3410_M20x1,5DIN_Binder723.step
M20x1,5 DIN 3852BuccaneerAPZ3410_M20x1,5DIN_Buccaneer.step
M20x1,5 DIN 3852Cable GlandAPZ3410_M20x1,5DIN_CableGland.step
M20x1,5 DIN 3852DIN 43650 AAPZ3410_M20x1,5DIN_DIN43650A.step
M20x1,5 DIN 3852M12x1 angularAPZ3410_M20x1,5DIN_M12x1-angular.step
M20x1,5 DIN 3852M12x1 straightAPZ3410_M20x1,5DIN_M12x1-straight.step
M20x1,5 DIN 3852StainlessSteelCableGlandAPZ3410_M20x1,5DIN_StainlessSteelCableGland.step
M20x1,5 EN 837Binder 723APZ3410_M20x1,5EN_Binder723.step
M20x1,5 EN 837BuccaneerAPZ3410_M20x1,5EN_Buccaneer.step
M20x1,5 EN 837Cable GlandAPZ3410_M20x1,5EN_CableGland.step
M20x1,5 EN 837DIN 43650 AAPZ3410_M20x1,5EN_DIN43650A.step
M20x1,5 EN 837M12x1 angularAPZ3410_M20x1,5EN_M12x1-angular.step
M20x1,5 EN 837M12x1 straightAPZ3410_M20x1,5EN_M12x1-straight.step
M20x1,5 EN 837StainlessSteelCableGlandAPZ3410_M20x1,5EN_StainlessSteelCableGland.step
M12x1,5 EN 837Binder 723APZ3410_M12x1,5EN_Binder723.step
M12x1,5 EN 837BuccaneerAPZ3410_M12x1,5EN_Buccaneer.step
M12x1,5 EN 837Cable GlandAPZ3410_M12x1,5EN_CableGland.step
M12x1,5 EN 837DIN 43650 AAPZ3410_M12x1,5EN_DIN43650A.step
M12x1,5 EN 837M12x1 angularAPZ3410_M12x1,5EN_M12x1-angular.step
M12x1,5 EN 837M12x1 straightAPZ3410_M12x1,5EN_M12x1-straight.step
M12x1,5 EN 837StainlessSteelCableGlandAPZ3410_M12x1,5EN_StainlessSteelCableGland.step
M12x1 EN 837Binder 723APZ3410_M12x1EN_Binder723.step
M12x1 EN 837BuccaneerAPZ3410_M12x1EN_Buccaneer.step
M12x1 EN 837Cable GlandAPZ3410_M12x1EN_CableGland.step
M12x1 EN 837DIN 43650 AAPZ3410_M12x1EN_DIN43650A.step
M12x1 EN 837M12x1 angularAPZ3410_M12x1EN_M12x1-angular.step
M12x1 EN 837M12x1 straightAPZ3410_M12x1EN_M12x1-straight.step
M12x1 EN 837StainlessSteelCableGlandAPZ3410_M12x1EN_StainlessSteelCableGland.step
G 1/2" DIN 3852, open port, material: PVDF,PVCBinder 723APZ3410_G1'2DIN-openport-PVDF,PVC_Binder723.step
G 1/2" DIN 3852, open port, material: PVDF,PVCBuccaneerAPZ3410_G1'2DIN-openport-PVDF,PVC_Buccaneer.step
G 1/2" DIN 3852, open port, material: PVDF,PVCCable GlandAPZ3410_G1'2DIN-openport-PVDF,PVC_CableGland.step
G 1/2" DIN 3852, open port, material: PVDF,PVCDIN 43650 AAPZ3410_G1'2DIN-openport-PVDF,PVC_DIN43650A.step
G 1/2" DIN 3852, open port, material: PVDF,PVCM12x1 angularAPZ3410_G1'2DIN-openport-PVDF,PVC_M12x1-angular.step
G 1/2" DIN 3852, open port, material: PVDF,PVCM12x1 straightAPZ3410_G1'2DIN-openport-PVDF,PVC_M12x1-straight.step
G 1/2" DIN 3852, open port, material: PVDF,PVCStainlessSteelCableGlandAPZ3410_G1'2DIN-openport-PVDF,PVC_StainlessSteelCableGland.step
M20x1,5 DIN 3852, open port, material: PVDF,PVCBinder 723APZ3410_M20x1,5DIN-openport-PVDF,PVC_Binder723.step
M20x1,5 DIN 3852, open port, material: PVDF,PVCBuccaneerAPZ3410_M20x1,5DIN-openport-PVDF,PVC_Buccaneer.step
M20x1,5 DIN 3852, open port, material: PVDF,PVCCable GlandAPZ3410_M20x1,5DIN-openport-PVDF,PVC_CableGland.step
M20x1,5 DIN 3852, open port, material: PVDF,PVCDIN 43650 AAPZ3410_M20x1,5DIN-openport-PVDF,PVC_DIN43650A.step
M20x1,5 DIN 3852, open port, material: PVDF,PVCM12x1 angularAPZ3410_M20x1,5DIN-openport-PVDF,PVC_M12x1-angular.step
M20x1,5 DIN 3852, open port, material: PVDF,PVCM12x1 straightAPZ3410_M20x1,5DIN-openport-PVDF,PVC_M12x1-straight.step
M20x1,5 DIN 3852, open port, material: PVDF,PVCStainlessSteelCableGlandAPZ3410_M20x1,5DIN-openport-PVDF,PVC_StainlessSteelCableGland.step
