ALZ 3925

$499
Ultra small diameter submersible pressure transmitter

Features

Ranges: 6 mH2O up to 250 mH2O
Basic accuracy: ±0.25%
Probe: Ø17 mm, AISI 316L stainless steel
Output: 4...20 mA
Sensor: silicon piezoresistive
Media temperatures: -20…+70 °C
Optional: Ex ia

Description

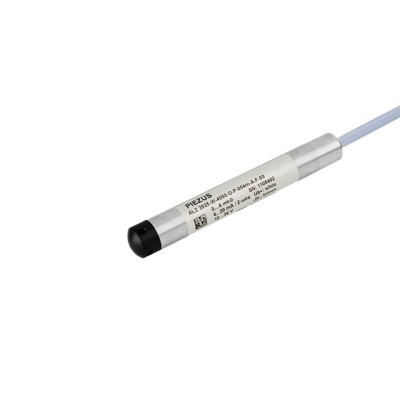

ALZ 3925 is an ultra small diameter submersible hydrostatic level transmitter. High quality silicon piezoresistive sensor, hydrometric cable with the ventilation tube and Ø17 mm diameter stainless steel housing are ideally suited for narrow conditions, including boreholes and piezometer wells.

Code configurator

Order code:

  • -BZ 05 / BZ 10
    BZ 05 / BZ 10
    Dry air junction box for submersible transmitters
    Port 1: cable gland, for vented transmitter cable Ø6...10 mm
    Port 2: cable gland, for equipment cable Ø6...10 mm
    Air venting: membrane air vent valve
    Housing: aluminum
    Features: 10kV surge protection
    Optional: Pt100 transmitter
  • -KZ 05
    KZ 05
    -KZ 05
    Anchoring clamp for submersible transmitter
    Cable diameter: 5.5-10.5 mm
    Materials: stainless steel housing, PA jaws
    Bearing capacity: 250 kg
