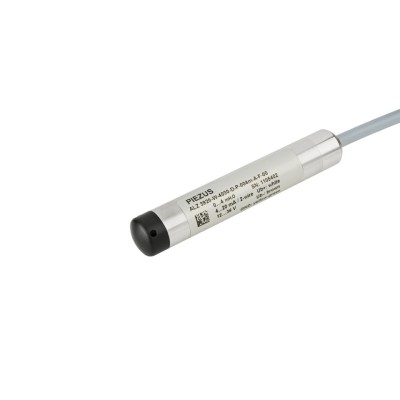

ALZ 3920

From $399
Small diameter submersible pressure transmitter

Features

Ranges: 1 mH2O up to 250 mH2O
Basic accuracy: ±0.25%
Probe: Ø21 mm, AISI 316L stainless steel
Output: 4...20 mA
Sensor: silicon piezoresistive
Media temperatures: -20…+70 °C
Optional: Ex ia

Description

ALZ 3920 is a small diameter version of our standard submersible hydrostatic level transmitter. High quality silicon piezoresistive sensor, robust Ø21 mm stainless steel housing and a hydrometric cable with the ventilation tube provide high perfomance in a slimmer form factor for a wide variety of industrial level measurement applications.

Applications

Confined spaces level measurement
Water, wastewater
Fuels, oils
Tanks, wells
Pump protection

Code configurator

Order code:

  • Dry air junction box for submersible transmitters
    Port 1: cable gland, for vented transmitter cable Ø6...10 mm
    Port 2: cable gland, for equipment cable Ø6...10 mm
    Air venting: membrane air vent valve
    Housing: aluminum
    Features: 10kV surge protection
    Optional: Pt100 transmitter
  • Anchoring clamp for submersible transmitter
    Cable diameter: 5.5-10.5 mm
    Materials: stainless steel housing, PA jaws
    Bearing capacity: 250 kg
