ALZ 3821

$399

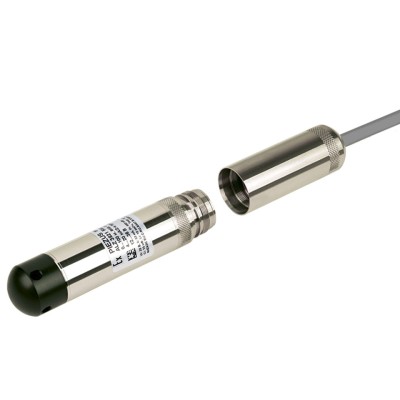

Precision submersible pressure transmitter with detachable probe

Features

Ranges: 1 mH2O up to 250 mH2O
Basic accuracy: ±0.1%
Probe: Ø27 mm, AISI 316L, detachable from the cable for easy service
Outputs: 4...20 mA; 0...20 mA; 0...10 V; 0...5 V; RS-485/Modbus RTU;
Sensor: silicon piezoresistive
Media temperatures: -20…+70 °C
Optional: Ex ia, HART, Pt100 temperature sensor

Description

ALZ 3821 is a precision submersible hydrostatic level transmitter with detachable probe, allowing quick and easy removal for service or replacement. High quality silicon piezoresistive sensor, electronic module with an active temperature compensation technology, robust stainless steel housing and a hydrometric cable with the ventilation tube make APZ 3821 an outstanding choice for the applications where better accuracy is required.

Code configurator

Order code:

  • Dry air junction box for submersible transmitters
    Port 1: cable gland, for vented transmitter cable Ø6...10 mm
    Port 2: cable gland, for equipment cable Ø6...10 mm
    Air venting: membrane air vent valve
    Housing: aluminum
    Features: 10kV surge protection
    Optional: Pt100 transmitter
  • Anchoring clamp for submersible transmitter
    Cable diameter: 5.5-10.5 mm
    Materials: stainless steel housing, PA jaws
    Bearing capacity: 250 kg
Implementation
3D model file
