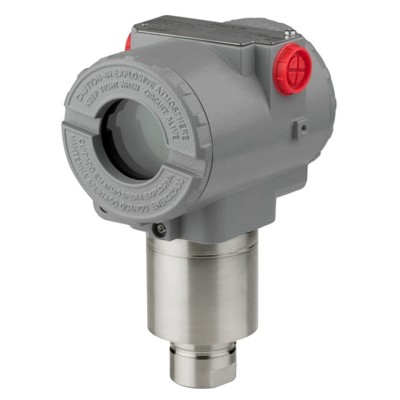

AMZ 5450

$549

Smart pressure transmitter with HART communication

Features

Pressure ranges: 15 mbar up to 400 bar
Overpressure: up to 600 bar
Accuracy: up to ±0.075%
Output: 4...20 mA
Communication: HART
Approvals: 0Ex ia IIC T4 Ga X / 1Ex d IIС Т5, Т6 Gb X
Sensor: capacitive stainless steel / silicon piezoresistive
Pressure port: 1/2” – 14 NPTF, adapters for other threads
Turn down: up to 100:1
Display: LCD with backlight

Description

AMZ 5450 industry standard pressure transmitters are based on a proven capacitive pressure sensor technology(*) and feature high performance, resistance to overpressure and stability in dynamic pressure and temperature environments. Certain parameters, including ZERO and SPAN are configurable by use of a special magnetic tool in the hazardous areas. Local liquid crystal display features backlight and is mountable at 0, 90, 180 and 270 degrees providing flexibility in transmitter installation angle.

*ranges over 70 bar feature piezoresistive sensor technology

Code configurator

Order code:

Mechanical connection Electrical connection Model file
female thread 1/2" NPTМ20x1,5AMZ5450_capacitive.step
female thread 1/2" NPTМ20x1,5AMZ5450_capacitive_display.step
assembled adapter - male thread М20х1,5М20x1,5AMZ5450_capacitive_display_adapter-M20x1,5DIN.step
male thread М20х1,5М20x1,5AMZ5450_piezoresistive_M20x1,5DIN.step
male thread М20х1,5М20x1,5AMZ5450_piezoresistive_M20x1,5DIN_display.step
male thread М20х1,5М20x1,5AMZ5450_piezoresistive_M20x1,5EN.step
male thread М20х1,5М20x1,5AMZ5450_piezoresistive_M20x1,5EN_display.step
